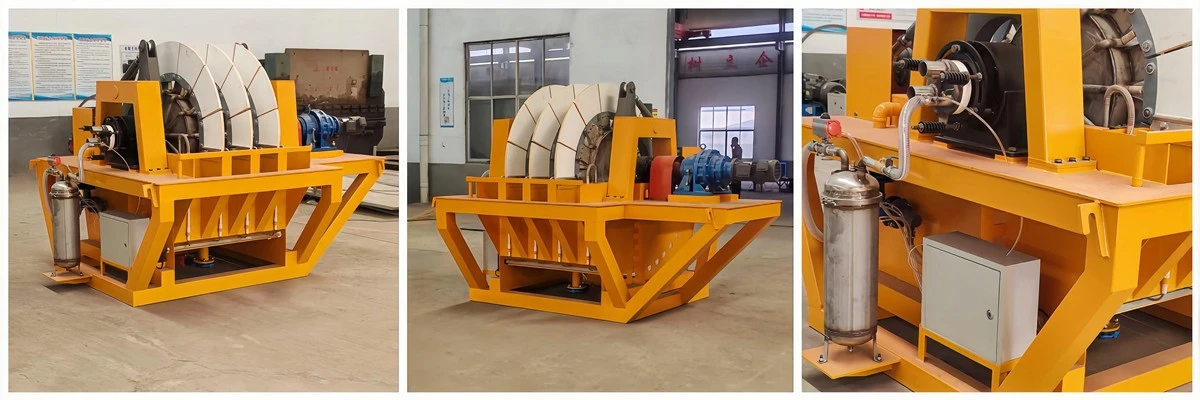

Ceramic Disc Filter
SA series ceramic disc filter is a new type of solid-liquid separation equipment independently developed and produced by our company. The product has passed ISO9001:2015 and other quality management system certifications.
Product Features
1. SA series ceramic disc filter utilizes advanced ceramic membranes, offering ultra-precise filtration capabilities. The filter cake purity ranges from 85% to 95%, significantly improving recovery rates and reducing subsequent transportation costs.
2. Compared to traditional filter cloths, ceramic filter plates offer superior corrosion resistance and a longer service life, reducing consumable costs.
3. The filtrate produced by the ceramic filter plates is crystal clear, and through a wet-dry cycle filtration process, the wash water can be reused, making it particularly suitable for water-constrained and high-water-consuming industries.
4. Utilizing electromechanical, electric control, and ultrasonic cleaning technologies, the filter achieves a high degree of automation and stable performance.
Product Application
Ceramic disc filters are widely used in nonferrous metals, metallurgy, quartz, chemical industry, medicine, food, environmental protection, thermal power plants, coal processing, sewage treatment and other industries.
Product Technical Parameters
|
Name |
Ceramic disc filter parameters |
||||||||||
|
3㎡ |
8㎡ |
12㎡ |
16㎡ |
20㎡ |
24㎡ |
30㎡ |
36㎡ |
45㎡ |
60㎡ |
80㎡ |
|
|
Filter plate quantity (block) |
36 |
48 |
72 |
96 |
120 |
96 |
120 |
144 |
180 |
180 |
240 |
|
Number of discs (turns) |
3 |
4 |
6 |
8 |
10 |
8 |
10 |
12 |
15 |
15 |
20 |
|
Filter area per circle (㎡) |
1 |
2 |
2 |
2 |
2 |
3 |
3 |
3 |
3 |
4 |
4 |
|
Filtering area (㎡) |
3 |
8 |
12 |
16 |
20 |
24 |
30 |
36 |
45 |
60 |
80 |
|
Disc speed (r/min) |
0.5-1.5 |
||||||||||
|
Main motor power (kw) |
1.5 |
1.5 |
1.5 |
2.2 |
2.2 |
2.2 |
2.2 |
3 |
3 |
5.5 |
5.5 |
We can customize it according to the size you need, you can tell me the product parameters you need at any time.
Product Drawings & Dimensions
After-Sales Service
We adhere to relevant industry standards and offer a one-year warranty. We provide free repair service for any quality issues that arise during the warranty period (excluding consumable parts).
We provide timely and professional technical guidance throughout product use to ensure smooth operation.
Product Certificate
In 2023, obtain ISO9001:2015 quality management system certification
In 2022, obtain high-tech enterprise certificate
Company Profile
Shandong Linqu Sanxing Electromagnetic Equipment Co., Ltd. integrates R&D, engineering design, manufacturing, installation and commissioning services, and can provide customized designs based on your specific needs and application environment. Our products are sold nationwide and exported to countries and regions such as Russia, Australia, Germany, Brazil, India, and South Africa. Our shipping packaging uses wooden boxes and steel frames to ensure product quality during transportation.
