Permanent Suspended Overband Magnet
Products Description
Permanent Suspended Overband Magnet
The Permanent Suspended Overband Magnet is a manual-discharge permanent magnet separator designed to be suspended above a belt conveyor via lifting lugs located on its top. It utilizes a composite magnetic system composed of high-remanence NdFeB (neodymium-iron-boron) permanent magnet materials; requiring no external power for excitation, it relies on permanent magnetic force to capture ferromagnetic impurities mixed within bulk materials, thereby protecting downstream equipment-such as crushers and ball mills-from impact damage caused by iron objects.
As material is conveyed beneath the separator, ferrous impurities-such as iron scraps, bolts, and nails-are attracted to and held against the unit's underside, allowing for periodic manual removal. The housing features a fully sealed, welded construction that is dustproof and rainproof, making it suitable for harsh operating environments, including outdoor and dusty conditions.
Products Features
Structure

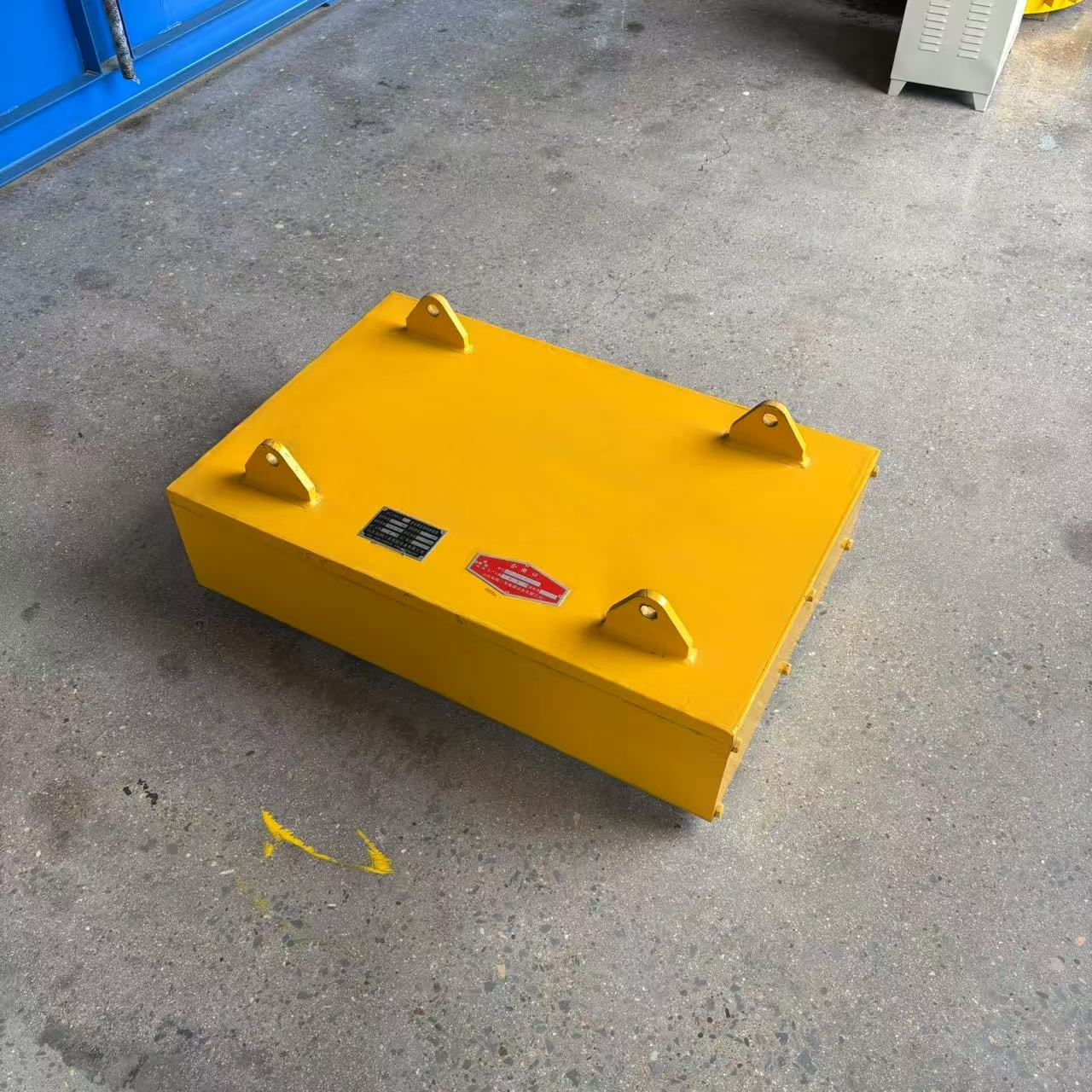

Features an all-carbon steel housing and an internal NdFeB (neodymium-iron-boron) permanent magnet system; equipped with four top lifting lugs for direct suspension above the conveyor belt.
Function
Automatically removes ferromagnetic debris (such as bolts, steel fragments, iron chunks, and nails) from conveyed materials, protecting downstream equipment-like crushers and mills-from damage caused by iron objects.
Features
Requires no power supply; no power consumption by coils; dustproof and rainproof; long-lasting holding force; easy maintenance.

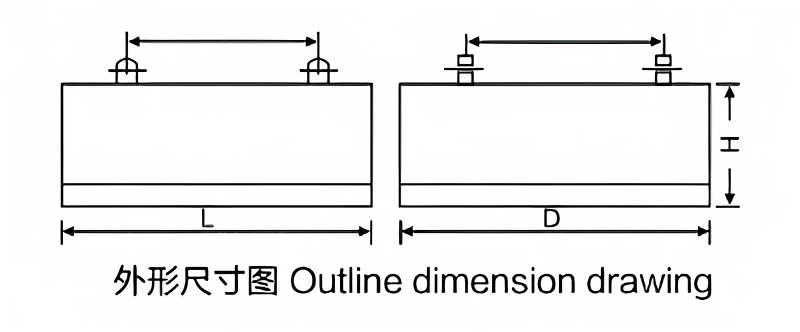

Model and Specifications
| Model | Outline size(mm) | Suspension height(mm) | Surface suction(Gs) | Applicable belt speed(≤m/s) | Distance between lifting ring holes AxB(mm) |
| RCYB-5 | 500x260x200 | 180 | ≥3500 | ≤2.5 | 400x220 |
| RCYB-6 | 600x400x200 | 200 | 480x300 | ||
| RCYB-8 | 800x430x250 | 250 | 640x350 | ||
| RCYB-10 | 1000x430x250 | 280 | 800x350 | ||
| RCYB-12 | 1200×700×330 | 350 | 960×400 | ||
| RCYB-14 | 1400×800×330 | 400 | 1120×450 | ||
| RCYB-16 | 1600×900×350 | 450 | 1280×500 | ||
| RCYB-18 | 1800×1000×350 | 500 | 1440×550 | ||
| RCYB-20 | 2000×1200×370 | 550 | 1600×600 |
Models include RCYB-5, RCYB-6, RCYB-8, RCYB-10, RCYB-12, etc., where the number indicates the compatible conveyor belt width (e.g., 5 = 500 mm, 10 = 1000 mm); magnetic field strength can be customized based on material thickness and suspension height.
Application Scenarios
Application Scenarios
Used in stone quarries, sand and gravel aggregate production lines, coal mines, cement plants, municipal solid waste treatment facilities, and wood flour production lines, the unit is suspended above the conveyor belt; as material passes beneath the iron remover, iron impurities are attracted to and held against the underside of the equipment, requiring periodic manual removal of the accumulated iron debris.
