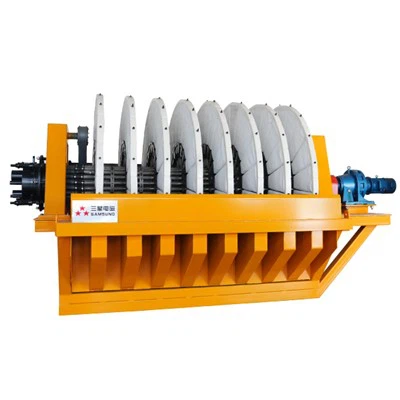

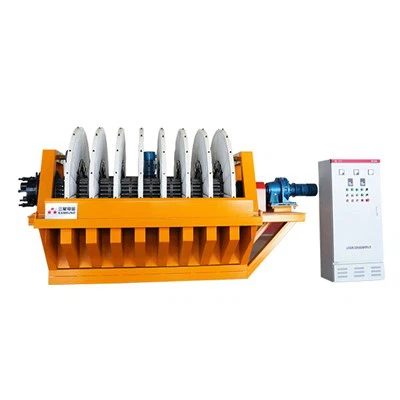

Rotary Disc Filter
A rotary disc filter utilizes vacuum as a filtration force to separate solids from liquids in slurries. The filter discs rotate at a constant speed around the main axis, simultaneously completing the entire process of slurry adsorption, filter cake dehydration, discharge, and filter cloth cleaning. The entire process proceeds continuously. The disc vacuum filters has passed ISO9001:2015 and other quality management system certifications, and is in line with the company's environmental benefits.
Product Features
1. Our new rotary disc filter fan design features evenly distributed dewatering holes and a large effective area, improving the filter's processing capacity.
2. The drive features a continuously variable speed, adjustable according to material concentration and flow rate. Using an AC speed-controlled motor or inverter, we achieve optimal dewatering results.
Product Technical Parameters
|
Diameter of filter disc(mm) |
2100 |
|||||||
|
Filter area(mm) |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
|
|
Number of filter discs |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
|
|
Number of filter fans per plate |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
|
|
Spindle motor power(kw) |
2.2 |
2.2 |
3 |
3 |
4 |
4 |
5.5 |
|
|
Mixing motor power(kw) |
3 |
3 |
4 |
4 |
5.5 |
5.5 |
7.5 |
|
|
Vacuum pump power(kw) |
22 |
37 |
37 |
55 |
55 |
55 |
75 |
|
|
Outline size(mm) |
L(mm) |
2535 |
2920 |
3315 |
3705 |
4095 |
4485 |
4875 |
|
W(mm) |
2480 |
2480 |
2480 |
2480 |
2480 |
2480 |
2480 |
|
|
H(mm) |
2690 |
2690 |
2690 |
2690 |
2690 |
2690 |
2690 |
|
|
Processing capacity(t/h) |
6-8.5 |
9-3 |
12-17 |
15-21.2 |
18-25.5 |
21-29.8 |
24-35 |
|
|
Diameter of filter disc(mm) |
3100 |
|||||
|
Filter area(mm) |
48 |
60 |
72 |
84 |
96 |
|
|
Number of filter discs |
4 |
5 |
6 |
7 |
8 |
|
|
Number of filter fans per plate |
20 |
20 |
20 |
20 |
20 |
|
|
Spindle motor power(kw) |
5.5 |
5.5 |
7.5 |
7.5 |
7.5 |
|
|
Mixing motor power(kw) |
7.5 |
7.5 |
11 |
11 |
11 |
|
|
Vacuum pump power(kw) |
90 |
90 |
110 |
132 |
132 |
|
|
Outline size(mm) |
L(mm) |
5265 |
4735 |
5235 |
5735 |
6235 |
|
W(mm) |
2480 |
4205 |
4205 |
4205 |
4205 |
|
|
H(mm) |
2690 |
3700 |
3700 |
3700 |
3700 |
|
|
Processing capacity(t/h) |
30-42.5 |
36-51 |
43-61.2 |
50-71.4 |
58-81.6 |
|
Product drawings
Application Industries
Mineral Processing Industry
Used for dehydrating non-ferrous, ferrous, and non-metallic ores, increasing mineral concentration and reducing transportation costs.
Cement Industry
Treats waste slag slurry and fly ash slurry from cement kiln co-processing of solid waste.
Coal Industry
Disc vacuum filters can reduce the moisture content of coal sludge filter cakes to 20%-28%. The dehydrated filter cakes can be made into briquettes, and the filtrate is returned to the coal washing system, achieving water recycling and meeting "zero emission" environmental requirements for coal mines.
Environmental Protection Industry
Used for municipal sludge dehydration, industrial wastewater treatment, and solid-liquid separation of metals such as steel slag, helping to achieve environmental compliance and resource recycling.
